Thumpstar - TSB 110cc
1) Pick your order quantity
2) Choose your assembly and warranty (Not available for UTVs and Motorcycles)
3) Pick the top 3 color colors you want and we'll do our best to get your first pick (Vehicles with no color options only have the color present in the pictures)
Any questions? Click the "Text Us!" button or give us a call

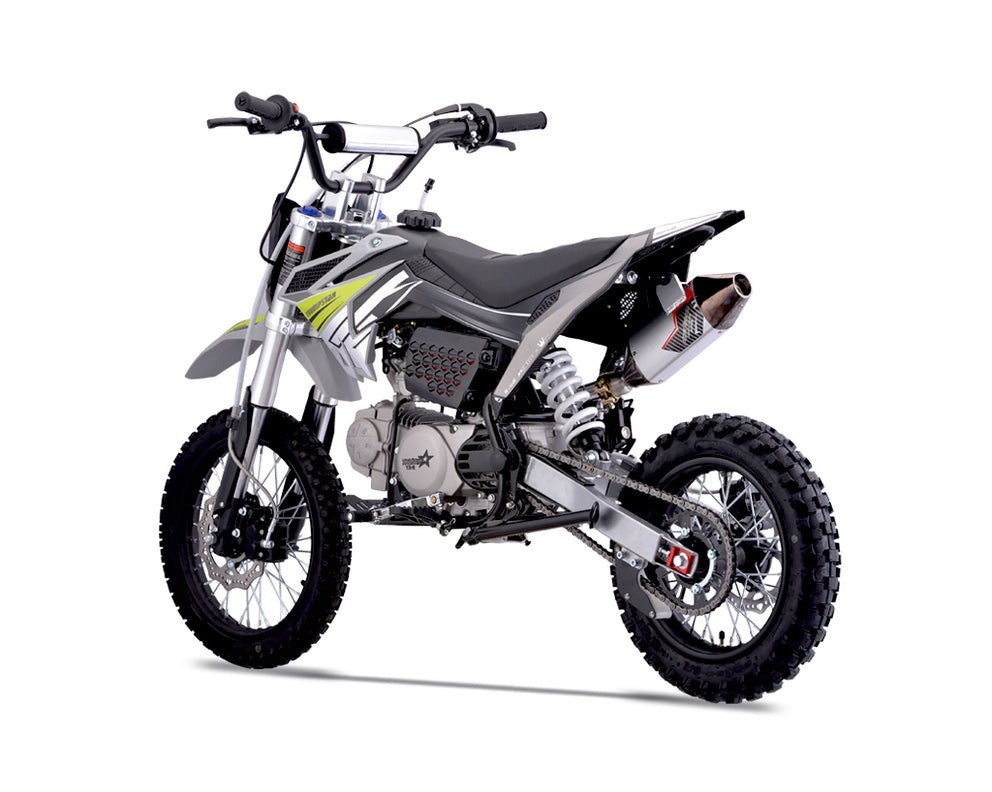

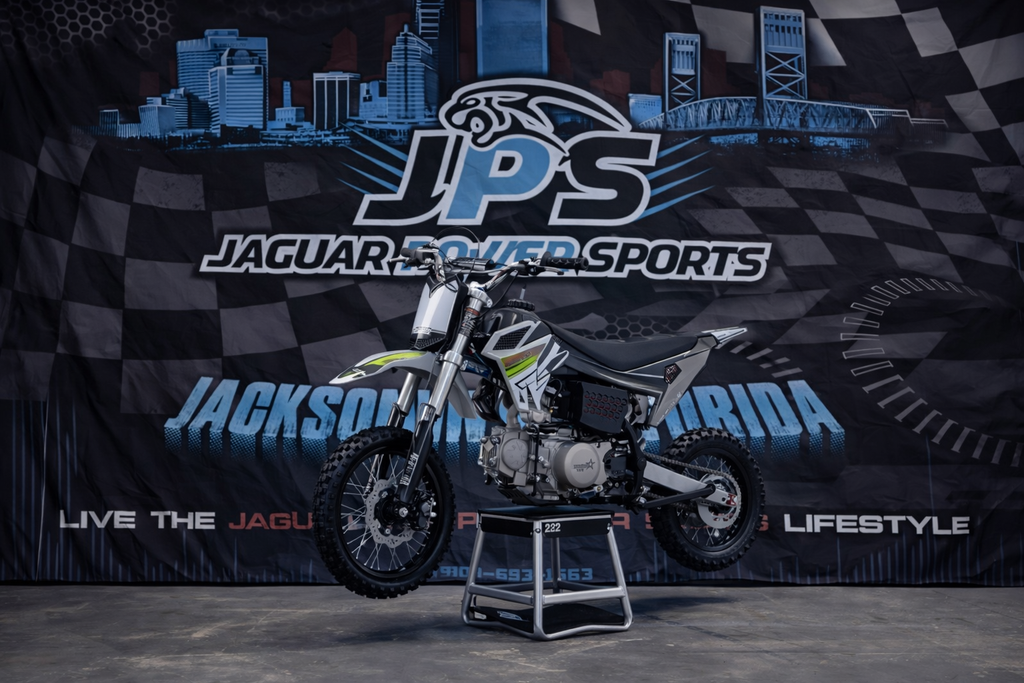

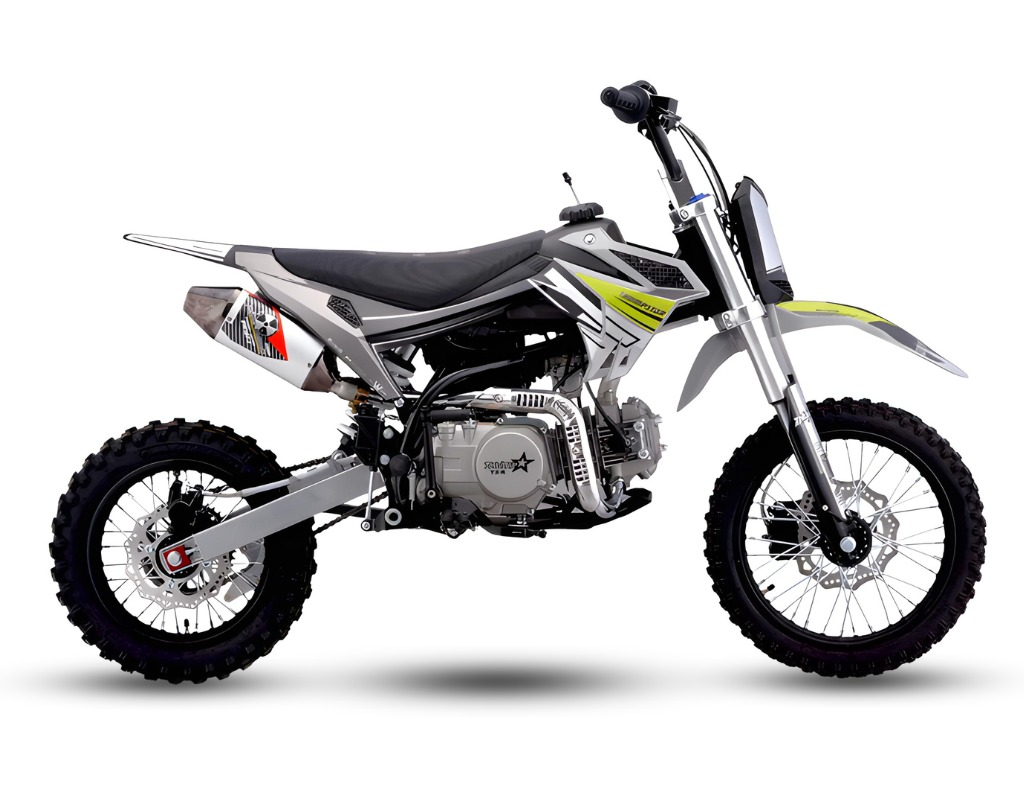

The Thumpstar TSB 110cc is designed with beginner and intermediate riders in mind. It features a reliable 110cc FH 4-stroke engine paired with a semi-automatic 4-speed gearbox, removing the complexity of manual clutch control while still giving riders gear-shifting flexibility.
Its Pipe Bomb DW2 exhaust, paired with a PE 19mm carburetor, ensures responsive throttle action and a distinct rumble. The reinforced 428 HD chain and PSC 6-bolt sprocket offer durability in off-road terrain.
The bike is supported by VS1 inverted forks up front and a matching rear VS1 shock for balanced suspension travel. Stopping power is handled by dual 190mm HSK disc brakes, and it rolls on alloy wheels with stainless spokes and premium tires for solid grip and performance.
With a seat height of 29.5 inches, the TSB 110cc is perfect for youth or smaller adult riders ready to hit the trail.
key features
- 110cc 4-stroke engine with semi-automatic 4-speed transmission
- Top speed up to 55 mph (gearing dependent)
- Durable Pipe Bomb DW2 exhaust system
- 428 heavy-duty chain with PSC 6-bolt sprocket
- Upgraded inverted VS1 front forks and rear shock
- 190mm HSK disc brakes front & rear
- Lightweight alloy rims with rim lock
- Perfect seat height for youth riders at 29.5"
| Thumpstar TSB 110cc Specifications | |
|---|---|
| Engine | FH | 4-Stroke |
| CC Rating | 110cc |
| Gearbox | Semi Automatic | Centrifugal Clutch | 4-Speed (N1234) |
| Starter | Kick |
| Carburetor | PE 19mm |
| Exhaust | Pipe Bomb DW2 | 38mm | Header Bomb |
| Final Drive | PSC 6 Bolt Sprocket | 428 HD Chain |
| Top Speed | 90kph / 55mph (depending on gearing) |
| Front Suspension | VS1 Inverted Forks | Length 700mm | 45/48mm |
| Rear Suspension | VS1 Shock |
| Brakes Front | 190mm Disc | HSK Single Piston |
| Brakes Rear | 190mm Disc | HSK Single Piston |
| Front Wheel & Tire | Alloy Rim | 70/100-14 |
| Rear Wheel & Tire | Alloy Rim w/ Rim Lock | Stainless Spoke | 80/100-12 |
| Wheelbase | 1230mm | 48.5" |
| Seat Height | 750mm | 29.5" (+10mm -10mm) |
| Weight (Net / Gross) | 80 / 90kg | 176 / 198 lbs |
| Tank Capacity | 3.4 Litres | 0.9 Gallon |
| Packing Size | 1420 x 430 x 640mm | 0.40m³ |
