AODES Pathcross 550L
1) Pick your order quantity
2) Choose your assembly and warranty (Not available for UTVs and Motorcycles)
3) Pick the top 3 color colors you want and we'll do our best to get your first pick (Vehicles with no color options only have the color present in the pictures)
Any questions? Click the "Text Us!" button or give us a call

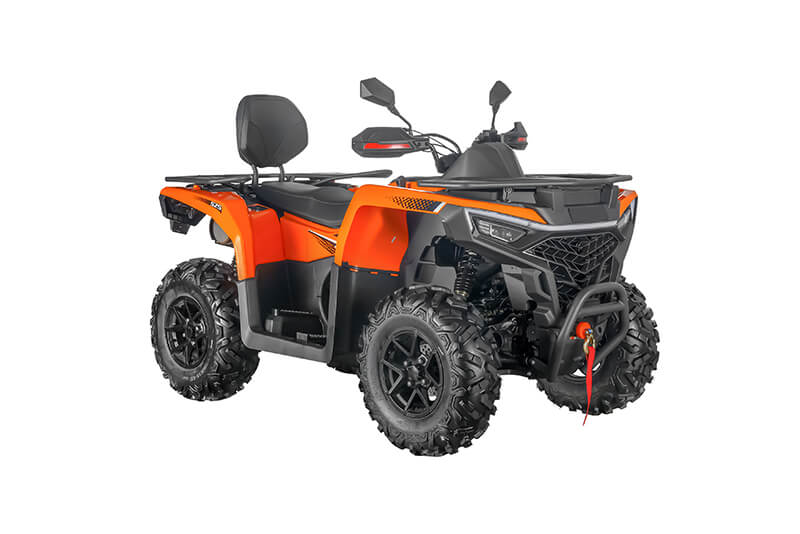

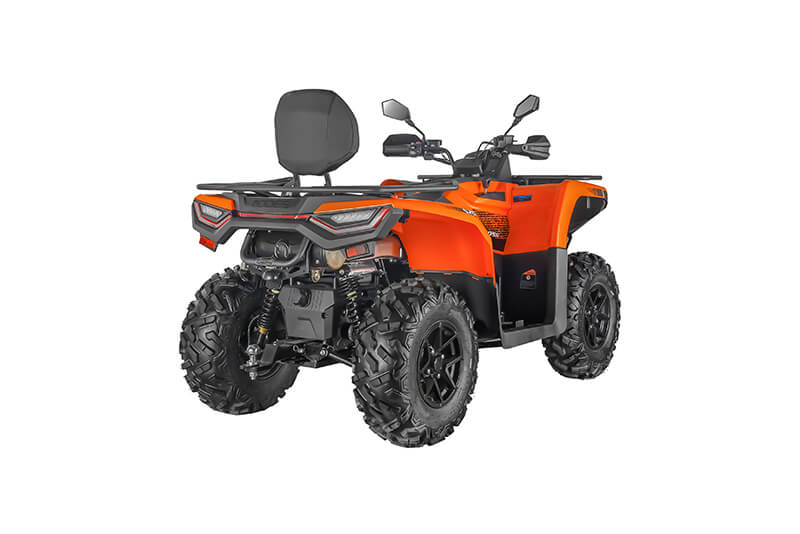

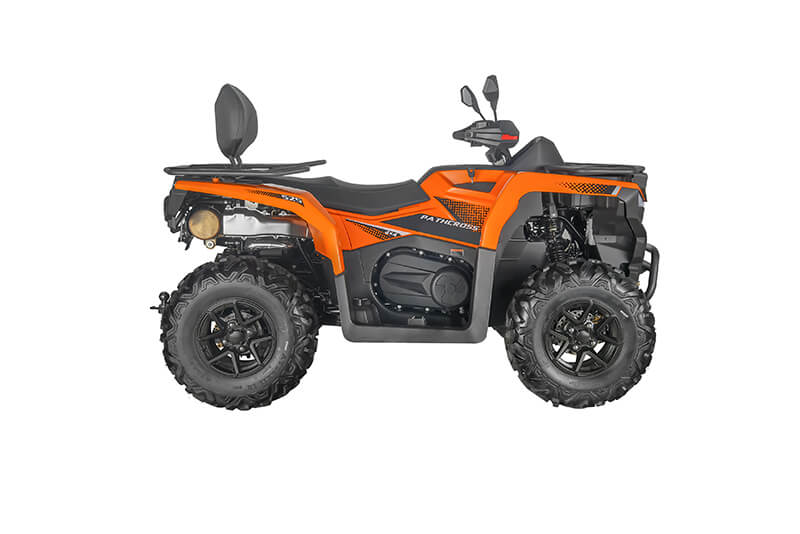

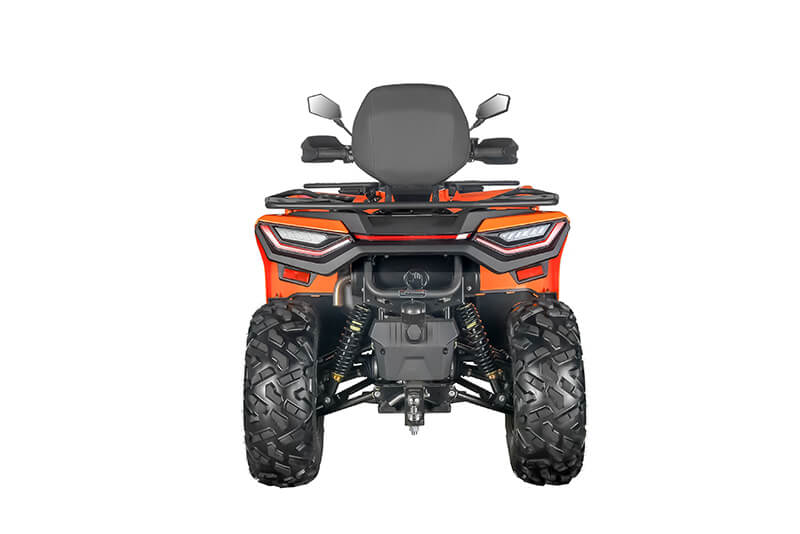

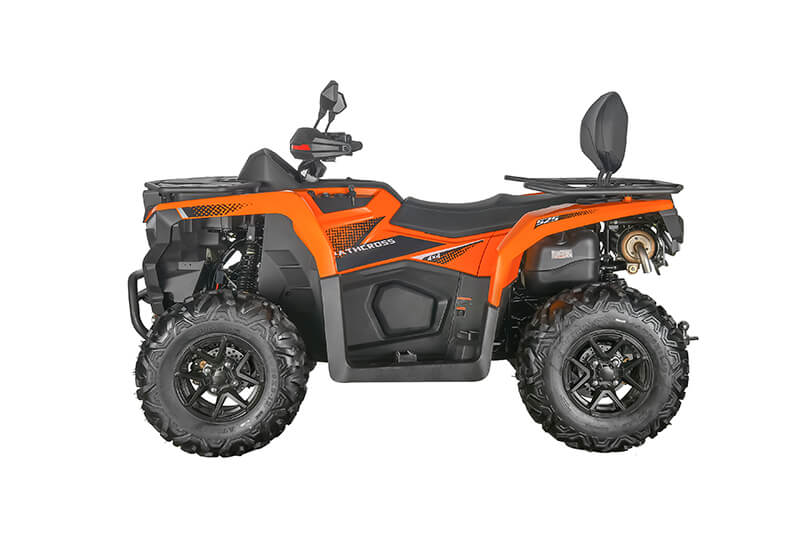

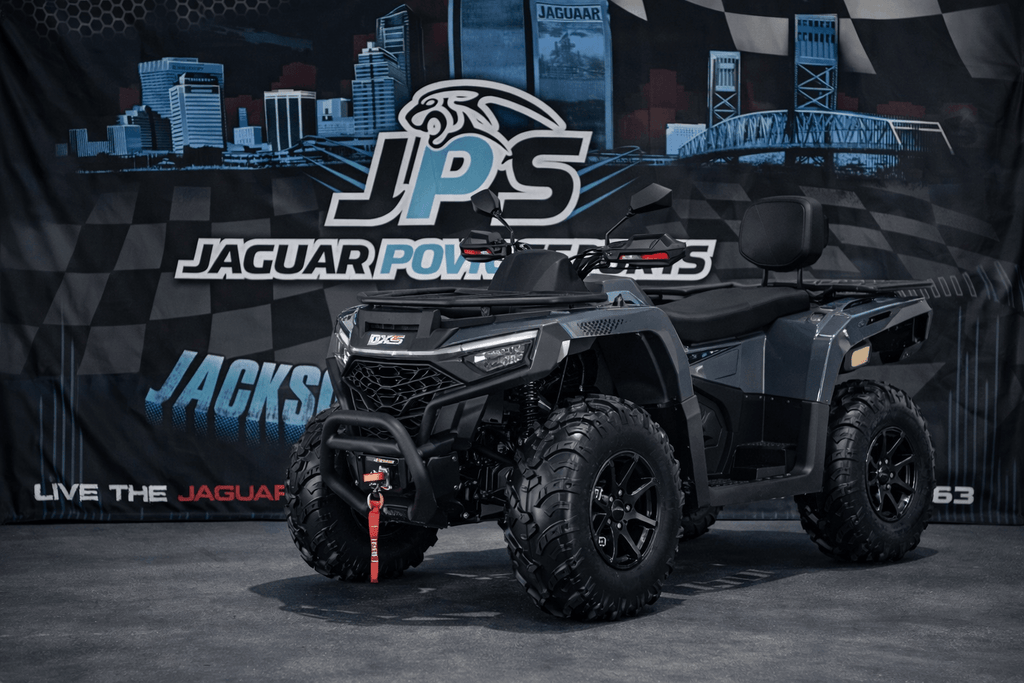

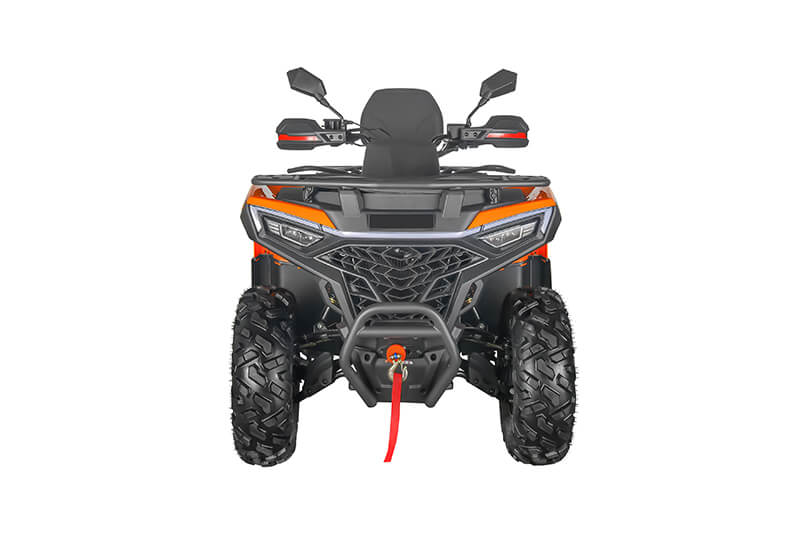

The AODES Pathcross 550 L ATV is a rugged, high-performance full-size utility ATV designed for riders who want power, versatility, and reliability on trails, farms, and tough terrain. Powered by a 495cc liquid-cooled, 4-stroke EFI engine with CVT automatic transmission (L-H-N-R-P), this ATV delivers smooth acceleration and strong mid-range power for trail riding, hauling, and work applications. Its independent double-A-arm suspension front and rear with oil-damped shocks provides excellent control and comfort over uneven terrain, while hydraulic disc brakes ensure confident stopping power. With a robust steel rim wheel setup, large 23-liter fuel tank, and a 3-meter turning radius, the Pathcross 550 L combines utility with trail-ready capability. Available now at Jaguar Power Sports in Jacksonville, Florida.
Key Features
-
495.3cc liquid-cooled EFI ATV engine – reliable power and efficient fuel delivery
-
Automatic CVT transmission with L-H-N-R-P – easy shifting for all conditions
-
Independent double A-arm front & rear suspension – smooth, controlled ride
-
Front & rear hydraulic disc brakes – strong, responsive stopping power
-
Off-road steel wheels with all-terrain tires (25×8-12 front / 25×10-12 rear)
-
Large 5.3-gallon fuel tank for extended rides
-
Heavy-duty cargo rack capacity – front 66 lb / rear 132 lb
-
Top speed ~59 MPH with strong mid-range torque
-
Compact 7.9′ × 3.8′ × 4.2′ design for trail and utility use
-
3-meter turning radius – excellent maneuverability
-
Utility ATV for adults & experienced riders
- Available in Jacksonville, FL at Jaguar Power Sports
| Engine & Performance | |
| Engine Type | Single-cylinder, 4-stroke, liquid-cooled engine |
| Engine Displacement | 495.3cc |
| Fuel System | Electronic Fuel Injection (EFI) |
| Cylinder Bore × Stroke | 3.58″ × 3.00″ |
| Maximum Power | 42.9 HP @ 7,000 RPM |
| Maximum Torque | 33.9 lb-ft @ 5,800 RPM |
| Cooling System | Liquid cooled |
| Starting System | Electric start |
| Transmission | Automatic CVT with Low, High, Neutral, Reverse & Park (L-H-N-R-P) |
| Suspension & Wheels | |
| Front Suspension | Independent double A-arm suspension |
| Rear Suspension | Independent double A-arm suspension |
| Suspension Travel | Front 7.1″ / Rear 8.7″ |
| Front Wheels & Tires | Steel wheels with 25×8-12 all-terrain tires |
| Rear Wheels & Tires | Steel wheels with 25×10-12 all-terrain tires |
| Shocks | Pre-loaded, oil-damped shocks |
| Dimensions & Weight | |
| Overall Dimensions (L × W × H) | 87.2″ × 46.1″ × 49.6″ |
| Wheelbase | 57.5″ |
| Ground Clearance | 10.4″ |
| Dry Weight | 827 lbs |
| Curb Weight | 882 lbs |
| Maximum Carrying Capacity | 551 lbs |
| Gross Vehicle Weight (GVW) | 1,433 lbs |
| Fuel & Utility | |
| Fuel Tank Capacity | 6.1 gallons |
| Front Rack Capacity | 66 lbs |
| Rear Rack Capacity | 132 lbs |
| Towing Capacity | 573 lbs (without brakes) / 1,323 lbs (with brakes) |
| Performance & Handling | |
| Top Speed | Up to 59 MPH |
| Turning Radius | 9.8 ft |
